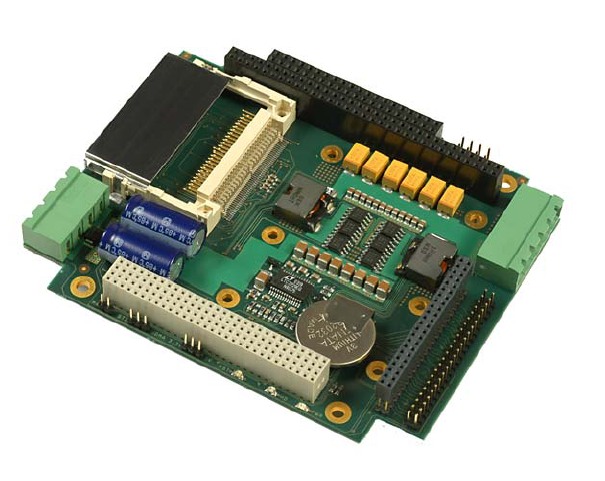

Модуль питания PC/104+ с интерфейсом для карт CF ( +15~28 V DC in, 5V / 15A out, 12V /1.5A out, 75W, -40°C~+85°)
Артикул: ADLPS104CF
FEATURES
Input Voltage Filtering
Up to 2CFA2.1 Compact Flash Socket
Battery Option
Direct Connect to ADL855PC Possible
Power Reset
Hard Disk LED
Input Crowbar
TECHNICAL SPECIFICATIONS
Function Power supply & CF board
Input Voltage From 8V up to 28V over 4 pin
Input Connector MSTBA2.5/4-G-5.08
Output voltage
5V up to 10 amp without cooling
5V up to 15 amp +20°C
5V up to 20 amps with additional cooling
PGood TTL compatible
Output connector MSTBA2.5/4-G-5.08 (5pin) PC/104 PC/104+
Extended Temperature –40°C to +85°C
MTBF 300,000h
DESCRIPTION
The ADLPS104CF power supply is designed specifically with the ADL855PC product in mind. You can also use the power supply for other CPU’s as well. The ADLPS104CF has a direct connection to a modified ADL Embedded Solutions CPU board on the ID port to allow for direct connection to the CF without cables.
The ADLPS104CF can supply 15A @ 5VDC (output) at room temperature without needing cooling. If additional cooling is a necessary it will be easy to place a heat sink on the board. Standard temperature range (ambient) of up to –40C to +85C.
Ordering Information
Item Codes Part# Description
ADLPS104CF 293017 ADLPS104CF, Power supply & CF board
Input Voltage Filtering
Up to 2CFA2.1 Compact Flash Socket
Battery Option
Direct Connect to ADL855PC Possible
Power Reset
Hard Disk LED
Input Crowbar
TECHNICAL SPECIFICATIONS
Function Power supply & CF board
Input Voltage From 8V up to 28V over 4 pin
Input Connector MSTBA2.5/4-G-5.08
Output voltage
5V up to 10 amp without cooling
5V up to 15 amp +20°C
5V up to 20 amps with additional cooling
PGood TTL compatible
Output connector MSTBA2.5/4-G-5.08 (5pin) PC/104 PC/104+
Extended Temperature –40°C to +85°C
MTBF 300,000h
DESCRIPTION
The ADLPS104CF power supply is designed specifically with the ADL855PC product in mind. You can also use the power supply for other CPU’s as well. The ADLPS104CF has a direct connection to a modified ADL Embedded Solutions CPU board on the ID port to allow for direct connection to the CF without cables.
The ADLPS104CF can supply 15A @ 5VDC (output) at room temperature without needing cooling. If additional cooling is a necessary it will be easy to place a heat sink on the board. Standard temperature range (ambient) of up to –40C to +85C.
Ordering Information
Item Codes Part# Description
ADLPS104CF 293017 ADLPS104CF, Power supply & CF board
Мин. температура
-40
Макс. температура
+85
Формат
PC/104
Подключение
PC/104
Внешние интерфейсы
CF/SD
Функции
Блок/модуль/конвертер питания
