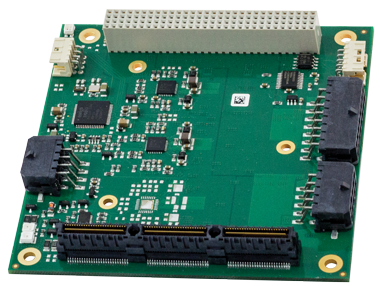

Блок питания PCI/104-Express 150 Вт, Input: 14-36V, Output: 5V/ 5VS/ 3.3V/12V, MTBF > 500 000Час, -40º ~ +85ºC

ADLPS104-150-5 / ADLPS104-150-12
Product Features
PCI/104-Express Form Factor (90mm x 96mm)
Two Variants Available:
>> ADLPS104-150-5: Input: 7-30V, Output: 5V, 5VS, 3.3V (optional 7-36V available)
>> ADLPS104-150-12: Input: 14-36V, Output: 5V, 5VS, 3.3V, 12V
Voltage and Current Specifications (common all variants):
>> Maximum Input Current = 15A
>> Maximum Power = 150W Combined
>> Available Output Current: 5VS/5A, 5V/20A, 3.3V/5A, 12V/10A
Enhanced EMI Circuitry Designed for IEC 55022 cl. B Emission and EN 55024 Immunity Compliance
MTBF > 500,000 Hours
Two Variants Available:
>> ADLPS104-150-5: Input: 7-30V, Output: 5V, 5VS, 3.3V (optional 7-36V available)
>> ADLPS104-150-12: Input: 14-36V, Output: 5V, 5VS, 3.3V, 12V
Voltage and Current Specifications (common all variants):
>> Maximum Input Current = 15A
>> Maximum Power = 150W Combined
>> Available Output Current: 5VS/5A, 5V/20A, 3.3V/5A, 12V/10A
Enhanced EMI Circuitry Designed for IEC 55022 cl. B Emission and EN 55024 Immunity Compliance
MTBF > 500,000 Hours
Input Protection:
>> Overcurrent
>> Overvoltage / Undervoltage / Surge
>> Reverse Voltage
Output Protection:
>> Voltage Out of Range (monitored via PWRGD)
>> Short-circuit
ATX Compliant Signals Available (PS-ON, PWRGD etc.)
Temperature Range: -25C to +70C Standard
Option Available for -40C to +85C with 293034 Heat Spreader
