Mодуль PICMG 1.3 на базе Core 2 Quad / Duo (VGA, LAN, 4 SATA RAID, 6 USB, 2 Com, Sound, PS2)
Complies with PICMG1.3
Intel ® Core2 Extreme/Core 2 Quad/Core 2 Duo supported
DDR2 667/800MHz DIMM Memory Up to 4GB
1x 10/100/1000Mbps Ethernet
HD Audio 7.1 CH
1x LPT/6x USB2.0/2x COM
4x SATA2 channels with software RAID0,1,5 and 10

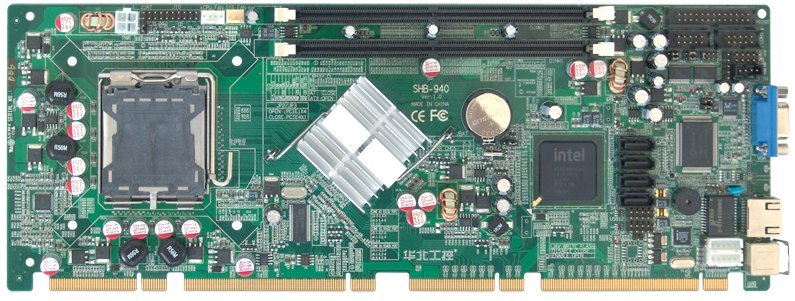

SHB-940 is one of all-size CPU card which meet PICMG1.3 spec. it based on Intel Q45 + ICH10DO chipset, support LGA775 based Intel Core2 Extreme/Core 2 Quad/Core 2 Duo processor, 800MHz/1066/1333MHz FSB, support HT and RAID 0/1/5/10.two 240Pin DDR2 DIMM memory slot, support DDR2 667/800MHz, max capacity to 4GB; Q45 integrated Intel GMA X4500, dynamic shares 512MB system memory as video memory; further more, it provides much I/O interface, six USB2.0, four SATA2, two COM, one LPT and one 10/100/1000Mbps LAN, it also support watchdog, IrDA, anti-virus BIOS etc.
System
Product Type Full-size PICMG1.3
Processor Supports LGA775 Intel ®Core2 Extreme/Core 2 Quad/Core 2 Duo with800/1066/1333MHz FSB, HT supported
System Memory 240-pin DIMM x 2, DDR2667/800 up to 4GB,
Chipset Intel ® Q45 + ICH10DO
I/O Chipset W83627DHG
Ethernet Intel 82567,10/100/1000Mbps,RJ-45x1
BIOS Award 16Mb Flash BIOS(SPI), Support ACPI
Wake On LAN Yes
Watchdog Timer Generates a time-out system reset
H/W Status Monitoring Supports Power Supply Voltages, Fan Speed and Temperature Monitoring
Expansion Interface —
Battery Lithium battery
Power Requirement +12V +Backplane Power supply input
Board Size 13.3"X 4.8"(338mm X 122mm)
Operating Temperature 0~+60C
Storage Temperature -40~+80C
Operating Humidity 5%~95% relative humidity, non-condensing
Display Support VGA display
Chipset Intel ® Q45 integrated Graphics( Intel® GMA X4500)
Memory
Dynamic shares 512MB system memory as video memory
Resolutions Up to 2048×1536@75Hz for CRT
LCD Interface —
I/O
Storage 4x SATA2(Support RAID0,1,5 and 10)
Serial Port 1x RS-232, 1x RS-232/422/485
Parallel Port SPP/EPP/ECP mode
USB 6x USB2.0
Keyboard and Mouse 1x 5-pin connector for keyboard , 1x 5-pin connector for mouse, 1x PS/2 port for keyboard and mouse
Digital I/O —
IrDA 1x IrDA Tx/Rx Header
Audio Realtek ALC888, HD Audio 7.1
Packing List
PN# Description
0040021019 Jumper
0600400019 Keyboard/Mouse Cable
0260560019 Serial port cable
0470120009 SATA Cable
0360250019 USB Cable with shielding
0260280019 Parallel Port Cable
0710350070 Audio Cable
-- Utility CD
-- User's Manual
-- Warranty Card
-- SHB-940
Ordering Information
Model No. Description
SHB-940-V10 Full Size CPU Card, PICMG1.3,LGA775, Core2 Extreme/Core 2 Quad/Core 2 Duo, DDR II 667/800MHz,VGA, Giga Lan,Audio,2x COM,6x USB,4x SATA II,1x LPT,Ver1.0
Optional Accessories
Model No. Description
KM-220-0220110009 NORCO Industry Keyboard
