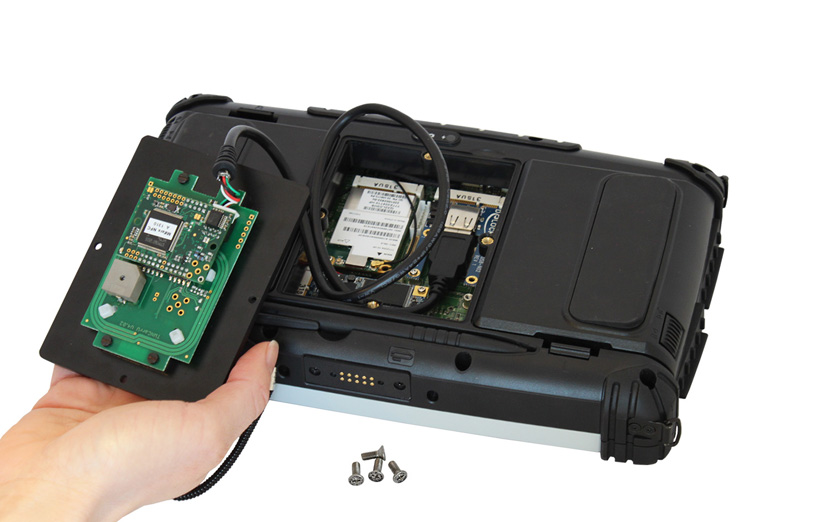

Algiz 7 TWN4 RFID Reader - устройство обмена данными с RFID 125 кгц / 134 кгц / 13.56 мгц для планшета, - 25°C ~ +80°C

Technical specification
Frequency    125kHz / 134.2kHz / 13.56MHz
Antenna    Aircoil (125kHz/134.2kHz) and Aircoil PCB (13.56MHz)
Material Cover Plate: PS; color similar to RAL 9004
Dimensions (L x W x H)
Cover Plate: 77mm x 98mm x 4mm / 3.0inch x 3.9inch x 0.16inch
OEM Board: 76mm x 49mm x 14mm / 3.0inch x 1.9inch x 0.6inch
Power Supply    4.3V … 5.5V via USB cable
Power Consumption    RF field off: 20mA , RF field on: 120mA typically
Temperature Range    Operating: -25°C up to +80°C (-13°F up to +176°F)
Storage: -45°C up to +85°C (-49°F up to +185°F)
Read- / Write Distance    Up to 100mm / 4inch (depending on transponder)
HOST Interface    USB
OS Support    Windows Vista, XP, 7 (32-/64-bit), 8 and Linux
Transmission Speed    HOST: USB: Full speed (12Mbit)
Modes of Operation    USB key board emulation – USB virtual COM port – Transparent
Relative Humidity    5% to 95% non-condensing
Supported Transponders
VERSION STANDARD:
125kHz/134.2kHz
4100, 4102, 4200 (1), AWID, Casi Rusco, HITAG 1 (2), HITAG 2 (2), HITAG S (2), Keri, MIRO, Pyramid, TIRIS/HDX, UNIQUE
Optionally, in consideration: 4305, Cardax, FDX-B, IDTECK, Q5, TITAN, T55x7, ZOODIAC
13.56MHz/ISO 14443A
Mifare Classic 1k & 4k, Mini, DESFire EV1, Plus S&X (3), Pro X (3), SmartMX (3), Ultralight, Ultralight C, SLE44R35, SLE66Rxx (my-d move) (3),
Legic Advant (1), PayPass3)
13.56MHz/ISO14443B
Calypso (3), CEPAS (3), HID iCLASS (1), Moneo (3), PicoPass (3), SRI512, SRT512, SRI4K, SRIX4K
13.56MHz/ISO18092 / NFC
NFCIP-1: Active and passive communication mode, Peer-to-Peer (4), NFC Forum Tag Type 1-4
Sony FeliCa (1)
13.56MHz/ISO15693
EM4x33 (3), EM4x35 (3), HID iCLASS (1), ICODE SLI, Legic Advant (1), M24LR16/64, Tag-It, SRF55Vxx (my-d vicinity) (3), PicoPass (3)
VERSION P:
VERSION STANDARD+Cotag, G-Prox (5), HID Prox, Honeywell
Nexwatch, Indala, ioProx
VERSION PI:
VERSION P + HID iClass (CSN and Facility Code)
Certifications
CE, R&TTE, RoHS-II compliant, FCC, IC, ACA, VCCI, KCC
Weight    Approx. 100 g
Notes:
1) UID Only
2) Encryption Not Supported
3) UID/PUPI only, read/write on request
4) In preparation
5) Hash Value Only
